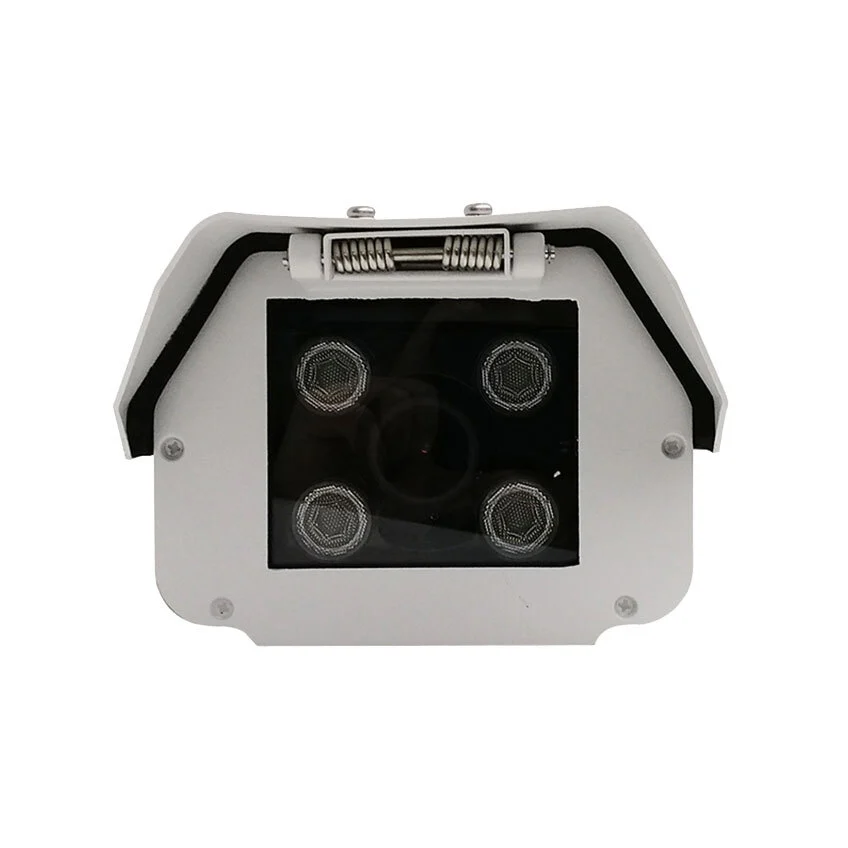

Car License Plate Capture Camera
A car license plate capture camera, also known as an automatic license plate recognition (ALPR) camera or license plate recognition (LPR) camera, is a specialized camera system designed to capture and read license plates on vehicles. These cameras are commonly used for various purposes, including law enforcement, parking management, access control, and traffic monitoring.
More Choices
Product parameters
|
Imaging |
Part Number |
RPL-C8 Series |
|
Sensor |
2MP/3MP/4MP/5MP Starlight CMOS |
|
|
Resolution |
2560*1440 |
|
|
Low illumination |
0.1 Lux color |
|
|
Electronic shutter |
0-10 ms; the default is 5 ms. |
|
|
Standard lens |
2.8-12mm zoom lens |
|
|
Interface |
M12 |
|
|
Image Indicator |
Image settings |
Brightness, gain, and exposure time |
|
Noise reduction |
2D/3D noise reduction is available |
|
|
Interface |
Network interface |
1-way 10/100 Mbps adaptive RJ45 port |
|
I/O Output |
2-way |
|
|
I/O Input |
4-way (the default switch quantity to switch different level signals) |
|
|
RS485 |
2-way |
|
|
USB |
1-way A-type USB interface |
|
|
Reset key |
1-way RESET key |
|
|
System indicator |
1-way GPIO status indicator |
|
|
Power supply indicator |
1-Way power supply indicator |
|
|
Reliability indicator |
Temperature |
Operating Temperature: -30℃～+75 ℃ |
|
Static electricity |
Contact 6 kV, air 8 kV |
|
|
Surge |
Electric surge 2 kV，Interface surge 6 kV |
|
|
EFT |
Power supply EFT 2 kV，Data cable EFT 2 kV |
|
|
Power supply |
12V DC |
|
|
Power consumption |
Power consumption≤4 W |
|
|
Protection |
IP65 |
|
|
Structure Parameter |
Fill light |
4 lights |
|
Overall dimensions |
Whole machine: 443 mm*146 mm*105 mm |
Camera Hardware
High-Resolution Camera: ALPR cameras are equipped with high-resolution sensors to capture clear images of license plates, even in various lighting conditions.
Infrared Illumination: Many ALPR cameras have built-in infrared LEDs to capture plates at night or in low-light environments.
Weatherproofing: Outdoor cameras are often weatherproof to withstand harsh environmental conditions.
License Plate Recognition Software
OCR (Optical Character Recognition): ALPR cameras use OCR software to analyze the captured images and extract the alphanumeric characters from the license plates.
Pattern Recognition: The software identifies the unique pattern and arrangement of characters on a license plate to accurately read it.
Database Integration
ALPR systems can be integrated with databases of known license plates, such as those linked to stolen vehicles or vehicles of interest.
Real-Time Processing & Data Logging
Real-Time Processing: Many ALPR systems process images and recognize license plates in real-time, allowing for immediate action or alerts.
Data Logging: ALPR systems typically log captured license plate data, including the plate number, date, time, and location. This data can be used for historical analysis or auditing purposes.
Applications
Law Enforcement: ALPR cameras are used by police to identify and track vehicles of interest, including those involved in criminal activities or with outstanding warrants.
Parking Management: ALPR cameras can automate parking enforcement, allowing for ticketing of vehicles with unpaid parking fees.
Access Control: They are used to grant or deny access to secured areas or parking lots based on recognized license plates.
Traffic Management: ALPR cameras help monitor traffic flow and can be used for toll collection and monitoring congestion.
Security: They enhance security by identifying vehicles entering or exiting a facility.
Accuracy
The accuracy of ALPR systems can vary based on factors like camera quality, lighting conditions, and the quality of the OCR software.
Cost
The cost of ALPR cameras varies depending on the features and capabilities of the system. Higher-end systems tend to be more expensive.
In summary, a car license plate capture camera is a specialized camera system with advanced software designed to capture and recognize license plates on vehicles for various applications. It plays a crucial role in law enforcement, parking management, and security systems.
Product parameters
|
Imaging |
Part Number |
RPL-C8 Series |
|
Sensor |
2MP/3MP/4MP/5MP Starlight CMOS |
|
|
Resolution |
2560*1440 |
|
|
Low illumination |
0.1 Lux color |
|
|
Electronic shutter |
0-10 ms; the default is 5 ms. |
|
|
Standard lens |
2.8-12mm zoom lens |
|
|
Interface |
M12 |
|
|
Image Indicator |
Image settings |
Brightness, gain, and exposure time |
|
Noise reduction |
2D/3D noise reduction is available |
|
|
Interface |
Network interface |
1-way 10/100 Mbps adaptive RJ45 port |
|
I/O Output |
2-way |
|
|
I/O Input |
4-way (the default switch quantity to switch different level signals) |
|
|
RS485 |
2-way |
|
|
USB |
1-way A-type USB interface |
|
|
Reset key |
1-way RESET key |
|
|
System indicator |
1-way GPIO status indicator |
|
|
Power supply indicator |
1-Way power supply indicator |
|
|
Reliability indicator |
Temperature |
Operating Temperature: -30℃～+75 ℃ |
|
Static electricity |
Contact 6 kV, air 8 kV |
|
|
Surge |
Electric surge 2 kV，Interface surge 6 kV |
|
|
EFT |
Power supply EFT 2 kV，Data cable EFT 2 kV |
|
|
Power supply |
12V DC |
|
|
Power consumption |
Power consumption≤4 W |
|
|
Protection |
IP65 |
|
|
Structure Parameter |
Fill light |
4 lights |
|
Overall dimensions |
Whole machine: 443 mm*146 mm*105 mm |
Camera Hardware
High-Resolution Camera: ALPR cameras are equipped with high-resolution sensors to capture clear images of license plates, even in various lighting conditions.
Infrared Illumination: Many ALPR cameras have built-in infrared LEDs to capture plates at night or in low-light environments.
Weatherproofing: Outdoor cameras are often weatherproof to withstand harsh environmental conditions.
License Plate Recognition Software
OCR (Optical Character Recognition): ALPR cameras use OCR software to analyze the captured images and extract the alphanumeric characters from the license plates.
Pattern Recognition: The software identifies the unique pattern and arrangement of characters on a license plate to accurately read it.
Database Integration
ALPR systems can be integrated with databases of known license plates, such as those linked to stolen vehicles or vehicles of interest.
Real-Time Processing & Data Logging
Real-Time Processing: Many ALPR systems process images and recognize license plates in real-time, allowing for immediate action or alerts.
Data Logging: ALPR systems typically log captured license plate data, including the plate number, date, time, and location. This data can be used for historical analysis or auditing purposes.
Applications
Law Enforcement: ALPR cameras are used by police to identify and track vehicles of interest, including those involved in criminal activities or with outstanding warrants.
Parking Management: ALPR cameras can automate parking enforcement, allowing for ticketing of vehicles with unpaid parking fees.
Access Control: They are used to grant or deny access to secured areas or parking lots based on recognized license plates.
Traffic Management: ALPR cameras help monitor traffic flow and can be used for toll collection and monitoring congestion.
Security: They enhance security by identifying vehicles entering or exiting a facility.
Accuracy
The accuracy of ALPR systems can vary based on factors like camera quality, lighting conditions, and the quality of the OCR software.
Cost
The cost of ALPR cameras varies depending on the features and capabilities of the system. Higher-end systems tend to be more expensive.
In summary, a car license plate capture camera is a specialized camera system with advanced software designed to capture and recognize license plates on vehicles for various applications. It plays a crucial role in law enforcement, parking management, and security systems.
