The barrier will automatically go back when meeting obstacles during closing.

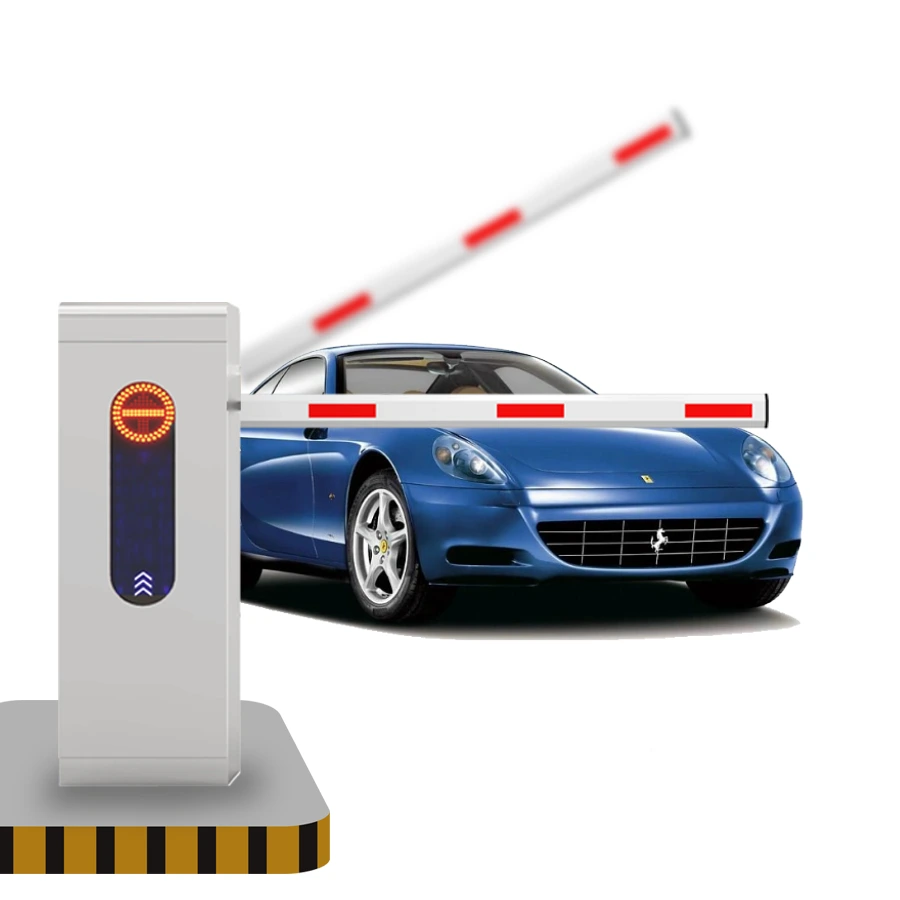

Adjustable Speed Electric Boom Barrier Gate for Parking Lot RPH-201 Realpark
The Adjustable Speed Electric Boom Barrier Gate for Parking Lot RPH-201 Realpark is a high-quality and durable solution for controlling vehicle access to parking lots. With its adjustable speed and electric operation, it provides efficient and reliable management of traffic flow, ensuring the safety and security of the parking area.
1. DC brushless movement, multi-stage adjustable speed, independent adjustment of lifting and closing speed;
2. 4-stage deceleration, large torque, no spring can lift 5M fence pole;
3. The springless movement is equipped with a spring;
4. 1M straight rod to 6M straight rod, 1M fence to 5M fence, one movement can be done,
and there is no need to change the spring when changing the rod;
5. Tempered glass blue LED backlight, traffic light display, optional traffic light luminous brake lever;
6. Safety: 24V DC power supply ensures personal safety;
7. Standard mobile phone Bluetooth debugging;
8. Energy saving: static power less than 2 watts;
9. Support open-to-position close-to-position output;
10. Open gate counting function;
11. No ground sense signal delay closing function;
12. The remote control opens the gate and directly enters the fleet mode;
13. Support small angle to close the sense of ground
Place of Origin:
China
MOQ:
1
shipping:
Express · Ocean freight · Land freight · Air freight
Customization:
Customized logo (Min. Order: 100 sets),Customized packaging (Min. Order: 100 sets),Graphic customization (Min. Order: 100 sets)
Brand Name:
Realpark
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
More Choices
no data
Supply Voltage
AC 220V ±10% 50Hz
Rated Capacitance
6uF/450V
Part Number
RPH-201
Number of Hits
5 million Times
Motor Power
DC brushless 100W
Motor Power
80W, 120W
Degree of Protection
IP44
Chassis Thickness
1.5mm
Remote control distance
30M
Chassis size
1030*340*260mm
Place of Origin
Guangdong, China
Products Description
|
Introducing the high-quality, reliable Automatic Security Traffic Gate designed for car parking lots.
This Factory Supply Road Barrier Gate is equipped with high-power technology, ensuring maximum security and efficiency.
|
|
|
|
Product number
|
RPH201
|
|
|
Power supply
|
AC220V±10%, 50Hz
|
|
|
Case thickness
|
1.5mm
|
|
|
Motor power
|
Dc brushless 100w
|
|
|
Brake lever length
|
Straight rod ≤4m (DC brushless 1.5~6 seconds) Straight rod 4M-6m (DC brushless 3~6 seconds)
|
|
|
Class of protection
|
IP44
|
|
|
Rated capacitance
|
6uF/450V
|
|
|
Motor Power
|
80W, 120W
|
|
|
Remote control distance
|
30M
|
|
|
Lift-off bar life times
|
Five million times
|
|
|
Chassis size
|
1030*340*260
|
|
Function: Unti-bumping
Function: Swing-out Boom Holder
The arm will swing out when hit directly by the vehicle to avoid further damage to the vehicle.
{{item.score}} Stars
{{item.pre}}%
{{item.nickname ? (item.nickname.slice(0, 2) + '*****') : item.source === 1 ? 'mall buyer' : '--'}}
{{item.comment_time}}
Review in the {{item.country}}
{{itemAttr.params_key}}: {{itemAttr.params_value}}
Supply Voltage
AC 220V ±10% 50Hz
Rated Capacitance
6uF/450V
Part Number
RPH-201
Number of Hits
5 million Times
Motor Power
DC brushless 100W
Motor Power
80W, 120W
Degree of Protection
IP44
Chassis Thickness
1.5mm
Remote control distance
30M
Chassis size
1030*340*260mm
Place of Origin
Guangdong, China
Products Description
|
Introducing the high-quality, reliable Automatic Security Traffic Gate designed for car parking lots.
This Factory Supply Road Barrier Gate is equipped with high-power technology, ensuring maximum security and efficiency.
|
|
|
|
Product number
|
RPH201
|
|
|
Power supply
|
AC220V±10%, 50Hz
|
|
|
Case thickness
|
1.5mm
|
|
|
Motor power
|
Dc brushless 100w
|
|
|
Brake lever length
|
Straight rod ≤4m (DC brushless 1.5~6 seconds) Straight rod 4M-6m (DC brushless 3~6 seconds)
|
|
|
Class of protection
|
IP44
|
|
|
Rated capacitance
|
6uF/450V
|
|
|
Motor Power
|
80W, 120W
|
|
|
Remote control distance
|
30M
|
|
|
Lift-off bar life times
|
Five million times
|
|
|
Chassis size
|
1030*340*260
|
|
Function: Unti-bumping
The barrier will automatically go back when meeting obstacles during closing.
Function: Swing-out Boom Holder
The arm will swing out when hit directly by the vehicle to avoid further damage to the vehicle.
