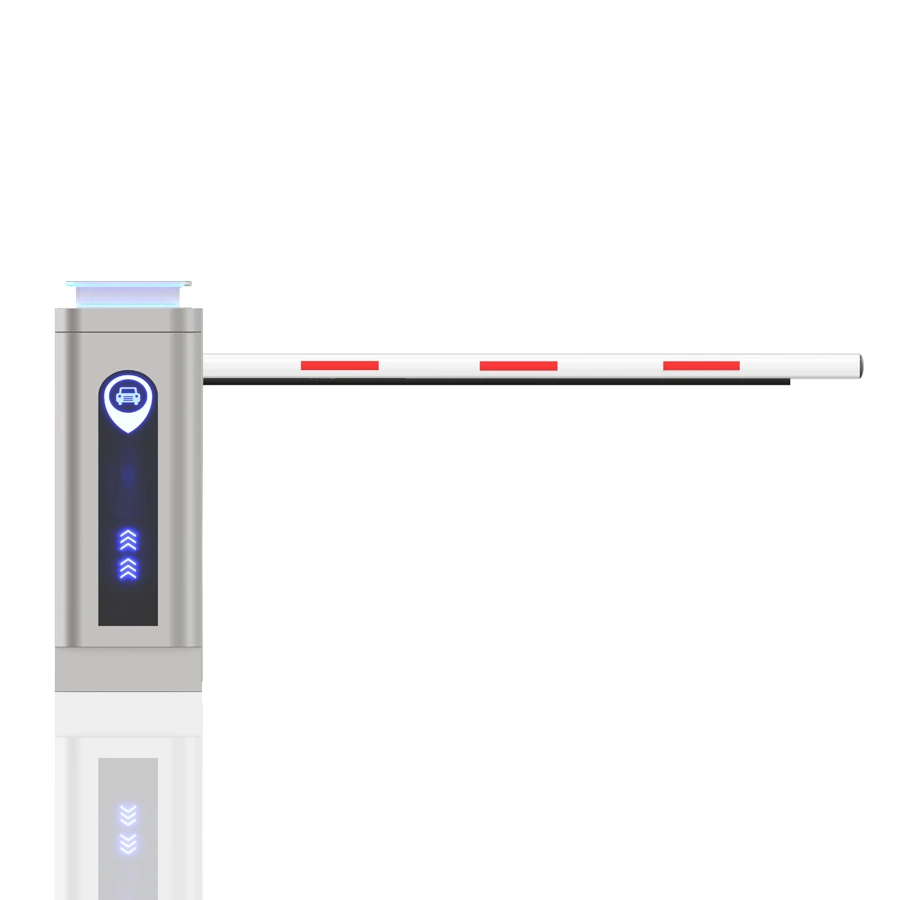

Parking Boom Barrier RPH-601
Realpark Boom Barrier is a product which Realpark owns the independent intellectual property rights. Its boom prevents entry of unauthorized vehicles to restricted area, and is raised by the linkage between the gate and the remote control, access control system, long-distance reader and number plate recognition system. If a floor sensor is installed, strike can be avoided, and the boom will be automatically lowered after the vehicle passes through the gate; otherwise, the boom can be lowered manually by using a remote controller or press button.
The boom can be equipped with pressure wave. When there is any hindrance during the boom lowering, the boom will be automatically raised to prevent it from striking vehicles or people. LED light tape is also optional for changing color in boom raising or lowering, helping driver avoid hitting the boom.
Function:
• Compact design, convenient for packing and lowering delivery cost.
• Realpark designed rolling pressure spring technology, extending product life.
• Boom can be raised and lowered smoothly and steadily.
• Outer case and interior can be flexibly separated, convenient for maintenance and customization.
• Simple installation-just fix the barrier gate on floor and connect it to electricity.
More Choices
Our advantage
|
Part Number |
RPH-601 |
|
Supply Voltage |
AC 220V ±10% 50Hz |
|
Chassis Thickness |
1.5mm |
|
Motor Power |
DC Brushless 100W |
|
Boom Type |
Straight Telescopic Boom |
|
Remote Controlling Distance |
≤30m |
|
Remote Controlling Frequency |
430MHz |
|
Cabinet Material |
Cold rolled steel |
|
Boom Material |
Aluminum or Foam or Wood |
|
Brake Lever Length |
Straight rod≤4.5m (DC 1.5~6S) |
|
Degree Of Protection |
IP44 |
|
Rated Capacitance |
6uF/450V |
|
Motor Power |
80W, 120W |
|
Remote Control Distance |
30M |
|
Chassis Size |
1030*340*260mm |
|
Boom Weight |
3.5kg(4.5m) ; 4.5kg(6m) |
|
Boom Length |
4.5m (packaging length 2.8m), |
|
Number Of Hits |
5 million Times |
Elegant Design and High-end Elegance RPH201
DC brushless movement, multi-stage adjustable speed, independent adjustment of lifting and closing speed.
24V DC power supply ensures personal safety
Tempered glass blue LED backlight, traffic light display, optional traffic light luminous brake lever; Energy saving: static power less than 2 watts;
RPH-201
Movement part details
Support small angle to close the sense of ground.
The springless movement is equipped with a spring.
4-stage deceleration, large torque, no spring can lift 5M fence pole
1M straight rod to 6M straight rod, 1M fence to 5M fence, one movement can be done,and there is no need to change the spring when changing the rod; Standard mobile phone Bluetooth debugging; Open gate counting function;
Support small angle to close the sense of ground
• Support open-to-position close-to-position output
• No ground sense signal delay closing function
• The remote control opens the gate and directly enters the fleet mode
Support open-to-position close-to-position output
• No ground sense signal delay closing function
• The remote control opens the gate and directly enters the fleet mode
Our advantage
|
Part Number |
RPH-601 |
|
Supply Voltage |
AC 220V ±10% 50Hz |
|
Chassis Thickness |
1.5mm |
|
Motor Power |
DC Brushless 100W |
|
Boom Type |
Straight Telescopic Boom |
|
Remote Controlling Distance |
≤30m |
|
Remote Controlling Frequency |
430MHz |
|
Cabinet Material |
Cold rolled steel |
|
Boom Material |
Aluminum or Foam or Wood |
|
Brake Lever Length |
Straight rod≤4.5m (DC 1.5~6S) |
|
Degree Of Protection |
IP44 |
|
Rated Capacitance |
6uF/450V |
|
Motor Power |
80W, 120W |
|
Remote Control Distance |
30M |
|
Chassis Size |
1030*340*260mm |
|
Boom Weight |
3.5kg(4.5m) ; 4.5kg(6m) |
|
Boom Length |
4.5m (packaging length 2.8m), |
|
Number Of Hits |
5 million Times |
Elegant Design and High-end Elegance RPH201
DC brushless movement, multi-stage adjustable speed, independent adjustment of lifting and closing speed.
24V DC power supply ensures personal safety
Tempered glass blue LED backlight, traffic light display, optional traffic light luminous brake lever; Energy saving: static power less than 2 watts;
RPH-201
Movement part details
Support small angle to close the sense of ground.
The springless movement is equipped with a spring.
4-stage deceleration, large torque, no spring can lift 5M fence pole
1M straight rod to 6M straight rod, 1M fence to 5M fence, one movement can be done,and there is no need to change the spring when changing the rod; Standard mobile phone Bluetooth debugging; Open gate counting function;
Support small angle to close the sense of ground
• Support open-to-position close-to-position output
• No ground sense signal delay closing function
• The remote control opens the gate and directly enters the fleet mode
Support open-to-position close-to-position output
• No ground sense signal delay closing function
• The remote control opens the gate and directly enters the fleet mode
