Product Parameter
|
Part Number |
RPL-YY04 |
|
|
LED Screen |
Size |
L192cm*H384cm (P3 full-color LED eight-line display) |
|
Resolution |
Two Pieces of Single LED module 64*64 Dot-matrix |
|
|
Car License Plate Camera |
Picture Output |
2 Million/3 Million/4 Million Mixel JPEG |
|
Minimum illumination |
0.01Lux |
|
|
Aperture |
Fixed Aperture |
|
|
Focal Length |
6mm |
|
|
Storage Interface |
Support SD2.0 StandardMicro SD(TF) Card, Max 32G |
|
|
Wide Dynamic Range |
≥100dB |
|
|
X04 Main Board |
Voice |
Remind Temporary Cars and Vip Cars,Welcome to you, Have a nice day, etc. |
|
Show |
Support Multi-LED Module |
|
|
Barrier Gate |
Voltage |
AC220V±10%，50Hz/60Hz |
|
Motor Type |
The Sixth Generation Brushless DC Motor |
|
|
Working Temperature |
-20°C~ +70°C |
|
|
Ambient Humidity |
5% to 95% |
|
|
Fixed Direction |
Can be interchanged left and right (Need to add accessories) |
|
|
Pole Length |
≤ 6 meters straight/curved pole ≤ 5.5 meters two columns ≤ 4.5 meters three columns |
|
|
Input Signal |
Open, close, stop, ground sense, anti-smashing |
|
|
Motor Power |
100W |
|
|
Remote Control Frequency |
430Mhz |
|
|
General Parameters |
Protection Class |
IP42，Certain Dustproof and Waterproof |
|
Operating Temperature |
-10℃～60℃ (Optional Thermostat) |
|
|
Working Humidity |
5%~85% |
|
|
Power Consumption |
160W MAX |
|
|
Equipment Size |
285*253*1563mm（Width*Thickness*Height） |
|
|
Weight |
≈50kg |
|

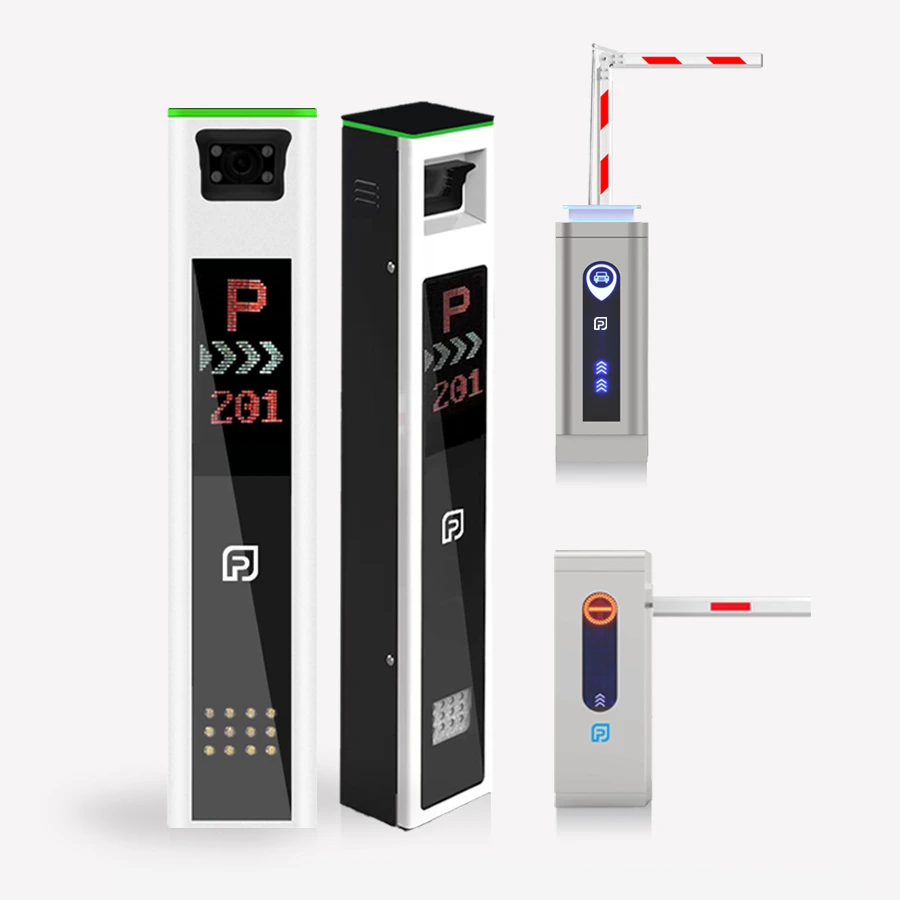

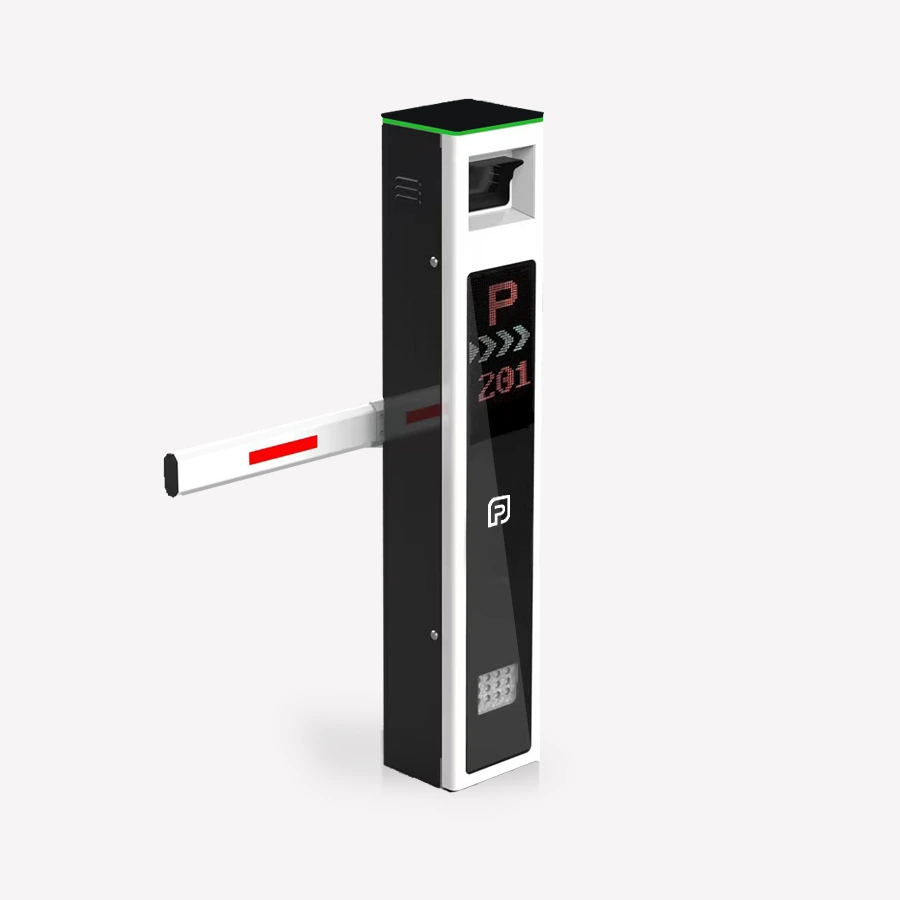

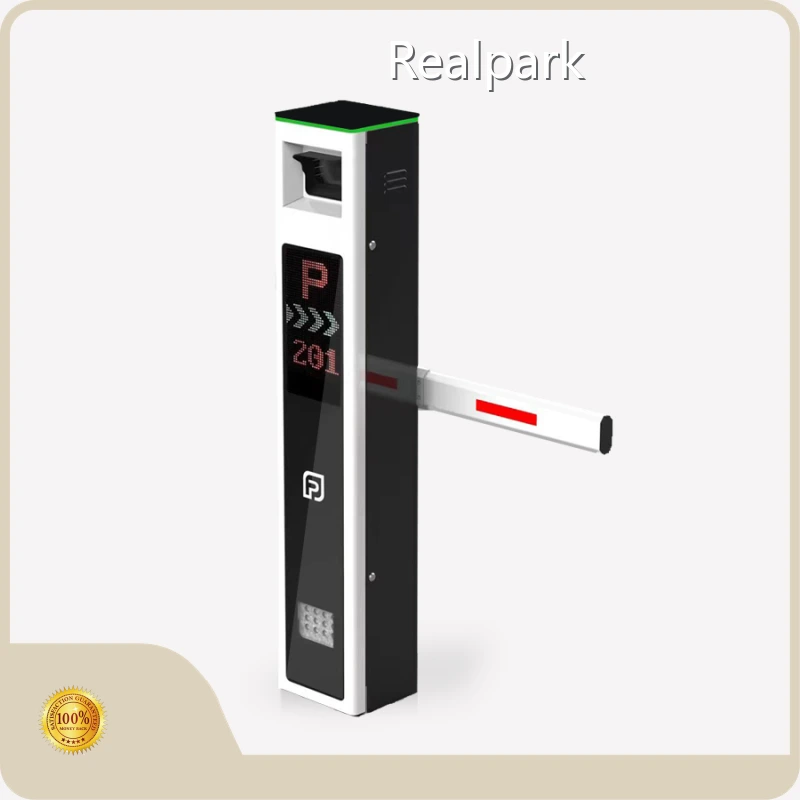

RPL-YY04 Integrated Barrier Gate Ticketless Parking Controller
RPL-YY04 is positioned as a professional barrier gate integrated ticketless parking controller, integrating barrier gate, LPR algorithm, high-definition camera, fill light, L192cm*H384cm (P3 full-color LED eight-line display), single LED display in the One. Module 64*64 dot matrix resolution. RPL-YY04 license plate recognition all-in-one machine is a high-end license plate recognition controller product carefully designed by Realpark. The system supports mobile payment, non-inductive payment, dynamic QR code scanning for unlicensed vehicles to enter and exit, LCD screen custom leisure time advertisements, electronic coupons, electronic invoices and other functional features, which can meet the requirements of pure license plates in the parking lot. Identify the system application environment to facilitate on-site installation, commissioning and maintenance.It is widely applicable to the following scenarios.
The product has a unique appearance and strong performance, giving people a sense of low-key, luxury, calm and grandeur
The main material is high-strength carbon steel. The front of the fuselage is laminated with a whole piece of tempered glass. The fuselage adopts geometric structure and sharp design. The combination of silver, white and black brings you a more shocking vision.
Recognition Widely License plate recognition algorithm exception handling function is powerful
Using the deep learning license plate recognition algorithm independently developed by Realpark, the accuracy rate of license plate recognition can reach more than 99%.
The image processing unit cooperates with intelligent exposure compensation technology to capture the optimal picture for identification in complex lighting environments such as strong light, weak light and backlight.
For license plate recognition under abnormal phenomena such as no license plate, defaced license plate, trouble license plate, and bad weather environment, the system will start the abnormal processing or fuzzy matching function to optimize the recognition results
Support Multiple parking solutions Wide Range of Applications
At present, we provide LPR parking, ticket parking, RFID card parking, UHF parking and other separate parking solutions, and can also be used in combination with two or more solutions. We provide the best parking solution according to your actual project needs.

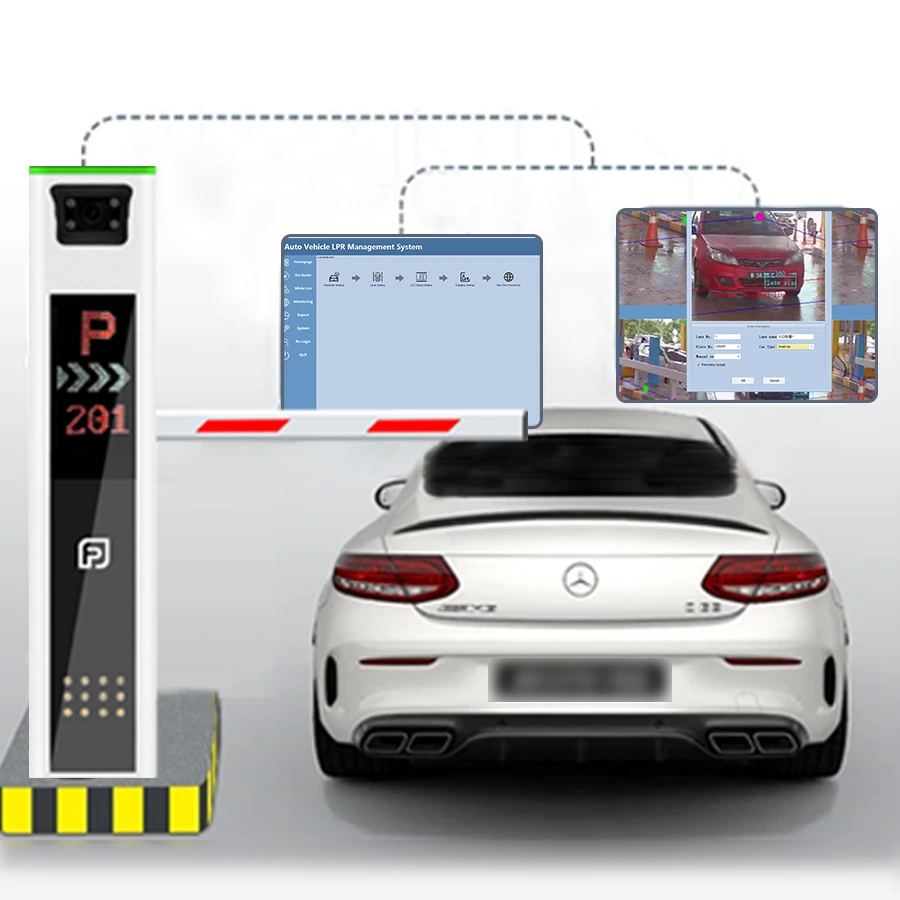

Smart parking solutions make unattended parking the trend of the future. Car owners use license plate recognition to enter and exit the parking lot through the parking lot for electronic payment, central payment, cash payment, or credit card payment. Background management personnel use the platform for round-the-clock monitoring and maintenance. The Realpark parking management system greatly reduces labor costs and maintenance costs, and also improves management efficiency.
Self-Developed Software and Hardware Intergrated Platform, More Perfect Performance， Support Customization
The self-developed license plate recognition all-in-one machine and Realpark license plate recognition parking management system are connected together to improve the intelligent level of equipment, reduce the difficulty of parking lot management, strengthen the emergency response capability of the parking lot, and reduce operating costs. Compared with the traditional parking management system, the management efficiency is higher, the cost is lower, and the application is more abundant.
Self-developed software, hardware and cloud platform, more perfect performance, support special function customization.
Company Advantages
· The electrical tests of Realpark automatic licence plate recognition are professionally conducted by a QC team. It is mainly tested for its continuity, voltage, and amperage.
· The product has an anti-aging property. It contains a large number of anti-aging agents including antioxidants, metal inhibitors, and heat stabilizers.
· This product is famous and is widely accepted in the industry due to its high quality.
Company Features
· Shenzhen Realpark Co., Ltd. has a command of technology to produce superior quality automatic licence plate recognition.
· Following the instruction of international quality standard, our automatic licence plate recognition can be show its great performance with superlative quality.
· We believe that sustainable manufacturing is efficient manufacturing. The computerized production lines we use cut costs and energy usage by ensuring that power is used only when it is needed.
Application of the Product
The automatic licence plate recognition developed and produced by our company can be widely used in various industries and professional fields.
Since the establishment, Realpark has always been focusing on the R&D and production of Intelligent parking management solutions,Parking management software,License plate recognition all-in-one machine. With strong production strength, we can provide customers with personalized solutions according to customers' needs.
