Realpark Automatic Plate Number Recognition for Swimming Pool - ≈70kg
Product details of the automatic plate number recognition
Product Overview
In order to meet the industry standards, our offered Realpark automatic plate number recognition is designed with the help of our talented team of professionals. automatic plate number recognition is flexible which can be adjusted by different circumstances. Various in function and wide in application, the automatic plate number recognition can be used in many industries and fields. Realpark has found its growing popularity and acceptance among overseas customers.
Product Information
Compared with other products in the same category, Realpark's automatic plate number recognition has the following advantages.
Technical Parameter
| Part Number | RPL-XY01 | |
| LED Screen | Size | 260cm*260cm（P4 Full-color LED 4-Line Display) |
| Resolution | 64*32 Dot-matrix Single LED Module | |
| Car License Plate Camera | Picture Output | 3 Million Mixel JPEG |
| Minimum illumination | 0.01Lux | |
| Aperture | Fixed Aperture | |
| Focal Length | 6mm | |
| Storage Interface | Support SD2.0 Standard Micro SD(TF) Card, Max 32G | |
| Wide Dynamic Range | ≥100dB | |
| X04 Main Board | Voice | Remind Temporary Cars and Vip Cars, Welcome to you, Have a nice day, etc. |
| Show | Support Multi-LED Module | |
| Power Voltage | Voltage | AC230V |
| Highway Barrier Gate | Motor Rated Speed | 22R/Min |
| Standard Stop Bar Length | 3.00m | |
| Running Noise | ≤60dB | |
| Bar Lift Time | 1.2～1.4S | |
| Operating Life | ≥5 Million Times | |
| Malfunction of the Lever | ≯0.01％ | |
| Motor Power | 80W | |
| General Parameters | Protection Class | IP42，Certain Dustproof and Waterproof |
| Operating Temperature | -10℃～60℃ (Optional Thermostat) | |
| Working Humidity | 5%~85% | |
| Power Consumption | 150W MAX | |
| Equipment Size | 380*400*1405mm（Width*Thickness*Height） | |
| Weight | ≈70kg | |
Technology Is The Core Of Our Hardware And Software, And The Appearance Is Designed Independently
The main material is high-strength carbon steel. The front of the fuselage is laminated with a whole piece of tempered glass. The fuselage adopts geometric structure and sharp design. The combination of silver, gold and black brings you a more shocking vision.

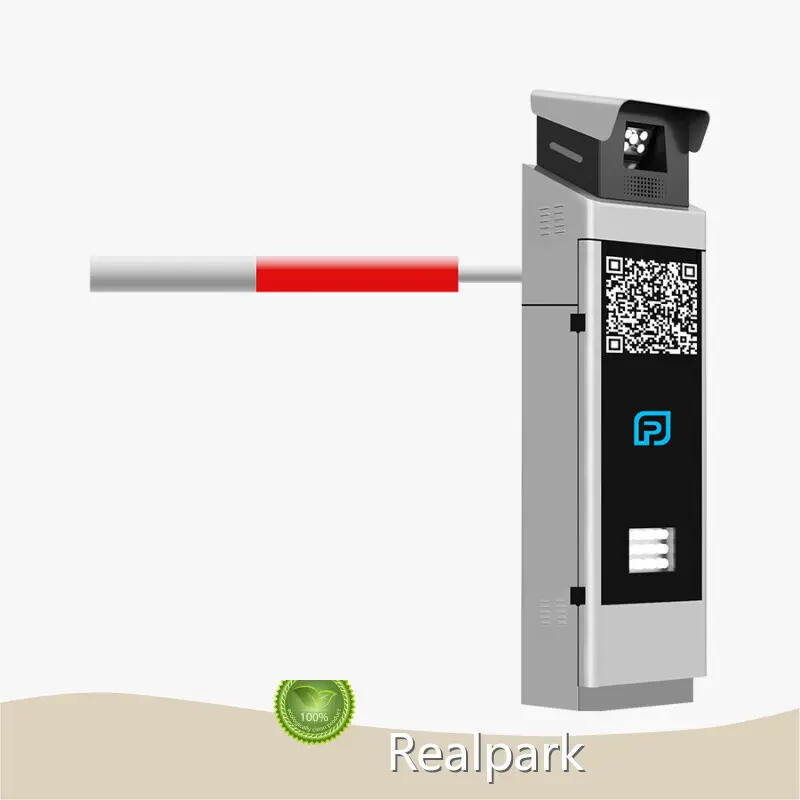

RPL-XY01 is positioned as a professional barrier gate integrated ticketless parking controller, integrating barrier gate, LPR algorithm, high-definition camera, fill light, 160mm*320mm (P4.75 LED 2 lines) LED display, single LED display in the One. Module 64*32 dot matrix resolution. The AI license plate recognition algorithm independently developed by Realpark has increased the recognition accuracy to 99%. This product can be used in conjunction with video intercom terminals and management platforms, and supports multiple extended functions, such as front-end voice interaction, advertisement push, etc. Most importantly, it can support unattended parking applications, online payment and remote management and maintenance. RPL-XY01 can be used in large commercial buildings, shopping malls, government agencies, residential areas, industrial parks, etc.
Perfectly Compatible with Complex Scenes
Dual license plate signal capture via video stream and loop detector/radar for 99% license plate capture rate. The product supports dual-channel camera collaborative recognition to meet the complex application scenarios of mixed driving of cars and motorcycles. At the same time, indoor and outdoor, winter rainy season is also completely no problem.
Powerful Hardware Platform, More Robust Performance
Built-in self-developed unique license plate recognition algorithm and high-end technology image processing unit from different countries around the world. At the same time, powerful application processing capabilities and deep learning capabilities for license plate recognition make the technology more powerful, and the product uses an industrial-grade quad-core high-end hardware platform .
Powerful Hardware Platform Greater Scalability to Access More
The self-developed license plate recognition algorithm and professional image processing unit are built on the industrial-grade quad-core high-end hardware platform, which makes the application processing capability and deep learning ability of license plate recognition more powerful.
The controller can be connected with visual intercom terminals, auxiliary identification cameras, information display screens, and environmental monitoring cameras to realize more parking lot applications, such as audio and video intercom, real-time monitoring, fast payment, emergency handling and other functions. Compared with the traditional parking management system, the management efficiency is higher, the cost is lower, and the application is more abundant.
It is perfectly compatible with different installation environments and usage scenarios.
This device can be connected to auxiliary identification cameras, information display screens, visual intercom terminals, and environmental monitoring cameras to realize more applications in parking lots, such as real-time monitoring, audio and video intercom, fast payment, emergency handling and other functions. Compared with the traditional parking management system, the management cost is lower, the application is richer, and the efficiency is higher.
Unattended parking lot self-service payment, cloud platform management and maintenance will become the mainstream
Smart parking solutions make unattended parking the trend of the future. Car owners use license plate recognition to enter and exit the parking lot through the parking lot for electronic payment, central payment, cash payment, or credit card payment. Background management personnel use the platform for round-the-clock monitoring and maintenance. The Realpark parking management system greatly reduces labor costs and maintenance costs, and also improves management efficiency.
Company Advantages
Realpark has extensive influence on the manufacturing of automatic plate number recognition which is regarded to be cost-effective. We bring together the right sales team across China. They match our markets’ and clients’ needs in terms of knowledge, skills, and cultural background. Based on the production concept of automatic plate number recognition, Realpark does its best to supply the best product. Contact us!
We are committed to guaranteeing the product quality and after-sales service. Welcome to contact us for cooperation!
