Professional Parking Solutions Provider for Various Industries Smart Automatic Parking Requirement.

Number Plate Recognition Realpark Brand Two Pieces of Single LED Module 64*64 Dot-matrix RPL-YY04

Part Number:

RPL-YY04

Minimum Illumination:

0.01Lux

Aperture:

Fixed Aperture

LED Screen Size:

L192cm*H384cm (P3 full-color LED eight-line display)

Resolution:

Two Pieces of Single LED module 64*64 Dot-matrix

Inquiry

more products

Parking Equipment

Security System Products

Send your inquiry

Product details of the number plate recognition

Product Introduction

Featuring a comfortable look the offered number plate recognition is made from quality approved range of materials. This product is durable and well received by users. To be a much more competitive enterprise, Realpark has been focusing on the quality assurance of number plate recognition.

Product Parameter

Part Number		RPL-YY04
LED Screen	Size	L192cm*H384cm (P3 full-color LED eight-line display)
LED Screen	Resolution	Two Pieces of Single LED module 64*64 Dot-matrix
Car License Plate Camera	Picture Output	2 Million/3 Million/4 Million Mixel JPEG
	Minimum illumination	0.01Lux
	Aperture	Fixed Aperture
	Focal Length	6mm
	Storage Interface	Support SD2.0 StandardMicro SD(TF) Card, Max 32G
	Wide Dynamic Range	≥100dB
X04 Main Board	Voice	Remind Temporary Cars and Vip Cars,Welcome to you, Have a nice day, etc.
X04 Main Board	Show	Support Multi-LED Module
Barrier Gate	Voltage	AC220V±10%，50Hz/60Hz
	Motor Type	The Sixth Generation Brushless DC Motor
	Working Temperature	-20°C~ +70°C
	Ambient Humidity	5% to 95%
	Fixed Direction	Can be interchanged left and right (Need to add accessories)
	Pole Length	≤ 6 meters straight/curved pole ≤ 5.5 meters two columns ≤ 4.5 meters three columns
	Input Signal	Open, close, stop, ground sense, anti-smashing
	Motor Power	100W
	Remote Control Frequency	430Mhz
General Parameters	Protection Class	IP42，Certain Dustproof and Waterproof
	Operating Temperature	-10℃～60℃ (Optional Thermostat)
	Working Humidity	5%~85%
	Power Consumption	160W MAX
	Equipment Size	2852531563mm（WidthThicknessHeight）
	Weight	≈50kg

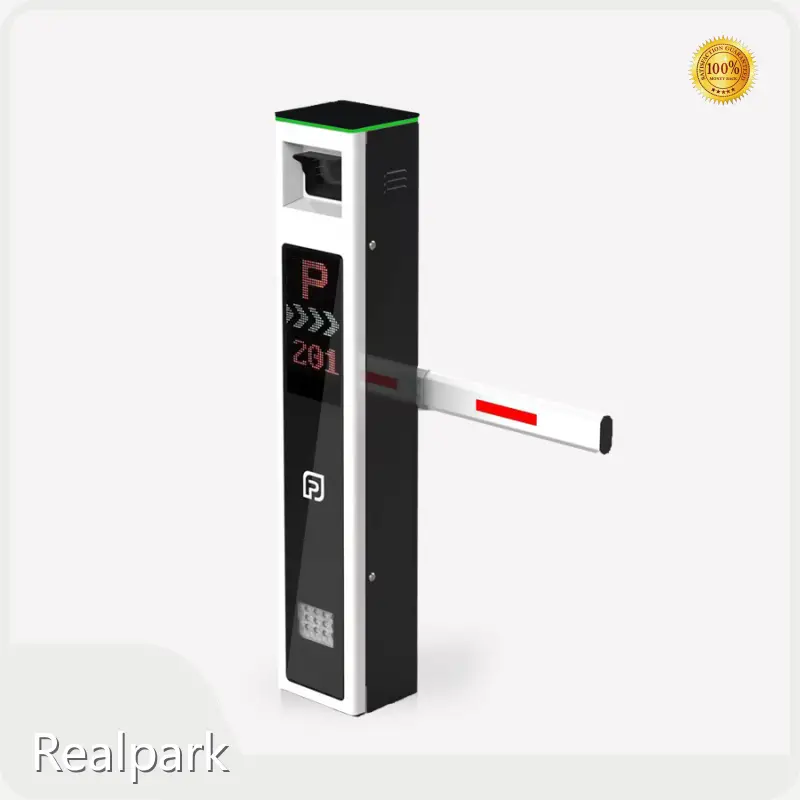

RPL-YY04 Integrated Barrier Gate Ticketless Parking Controller

RPL-YY04 is positioned as a professional barrier gate integrated ticketless parking controller, integrating barrier gate, LPR algorithm, high-definition camera, fill light, L192cm*H384cm (P3 full-color LED eight-line display), single LED display in the One. Module 64*64 dot matrix resolution. RPL-YY04 license plate recognition all-in-one machine is a high-end license plate recognition controller product carefully designed by Realpark. The system supports mobile payment, non-inductive payment, dynamic QR code scanning for unlicensed vehicles to enter and exit, LCD screen custom leisure time advertisements, electronic coupons, electronic invoices and other functional features, which can meet the requirements of pure license plates in the parking lot. Identify the system application environment to facilitate on-site installation, commissioning and maintenance.It is widely applicable to the following scenarios.

The product has a unique appearance and strong performance, giving people a sense of low-key, luxury, calm and grandeur

The main material is high-strength carbon steel. The front of the fuselage is laminated with a whole piece of tempered glass. The fuselage adopts geometric structure and sharp design. The combination of silver, white and black brings you a more shocking vision.

Recognition Widely License plate recognition algorithm exception handling function is powerful

Using the deep learning license plate recognition algorithm independently developed by Realpark, the accuracy rate of license plate recognition can reach more than 99%.

The image processing unit cooperates with intelligent exposure compensation technology to capture the optimal picture for identification in complex lighting environments such as strong light, weak light and backlight.

For license plate recognition under abnormal phenomena such as no license plate, defaced license plate, trouble license plate, and bad weather environment, the system will start the abnormal processing or fuzzy matching function to optimize the recognition results

Pro33-10

Pro33-11

Support Multiple parking solutions Wide Range of Applications

At present, we provide LPR parking, ticket parking, RFID card parking, UHF parking and other separate parking solutions, and can also be used in combination with two or more solutions. We provide the best parking solution according to your actual project needs.

Smart parking solutions make unattended parking the trend of the future. Car owners use license plate recognition to enter and exit the parking lot through the parking lot for electronic payment, central payment, cash payment, or credit card payment. Background management personnel use the platform for round-the-clock monitoring and maintenance. The Realpark parking management system greatly reduces labor costs and maintenance costs, and also improves management efficiency.

Self-Developed Software and Hardware Intergrated Platform, More Perfect Performance， Support Customization

The self-developed license plate recognition all-in-one machine and Realpark license plate recognition parking management system are connected together to improve the intelligent level of equipment, reduce the difficulty of parking lot management, strengthen the emergency response capability of the parking lot, and reduce operating costs. Compared with the traditional parking management system, the management efficiency is higher, the cost is lower, and the application is more abundant.

Self-developed software, hardware and cloud platform, more perfect performance, support special function customization.

Pro33-14

Pro33-15

Pro33-16
