Company Advantages
· Realpark number plate recognition is expertly crafted from reliable materials.
· It is designed to have a long lifespan to achieve cost-effectiveness.
· We can provide all relative certificates for our number plate recognition for your reference.
Product Parameter
Part Number |
RPL-YY04 |
|
LED Screen |
Size |
L192cm*H384cm (P3 full-color LED eight-line display) |
Resolution |
Two Pieces of Single LED module 64*64 Dot-matrix |
|
Car License Plate Camera |
Picture Output |
2 Million/3 Million/4 Million Mixel JPEG |
Minimum illumination |
0.01Lux |
|
Aperture |
Fixed Aperture |
|
Focal Length |
6mm |
|
Storage Interface |
Support SD2.0 StandardMicro SD(TF) Card, Max 32G |
|
Wide Dynamic Range |
≥100dB |
|
X04 Main Board |
Voice |
Remind Temporary Cars and Vip Cars,Welcome to you, Have a nice day, etc. |
Show |
Support Multi-LED Module |
|
Barrier Gate |
Voltage |
AC220V±10%,50Hz/60Hz |
Motor Type |
The Sixth Generation Brushless DC Motor |
|
Working Temperature |
-20°C~ +70°C |
|
Ambient Humidity |
5% to 95% |
|
Fixed Direction |
Can be interchanged left and right (Need to add accessories) |
|
Pole Length |
≤ 6 meters straight/curved pole ≤ 5.5 meters two columns ≤ 4.5 meters three columns |
|
Input Signal |
Open, close, stop, ground sense, anti-smashing |
|
Motor Power |
100W |
|
Remote Control Frequency |
430Mhz |
|
General Parameters |
Protection Class |
IP42,Certain Dustproof and Waterproof |
Operating Temperature |
-10℃~60℃ (Optional Thermostat) |
|
Working Humidity |
5%~85% |
|
Power Consumption |
160W MAX |
|
Equipment Size |
285*253*1563mm(Width*Thickness*Height) |
|
Weight |
≈50kg |

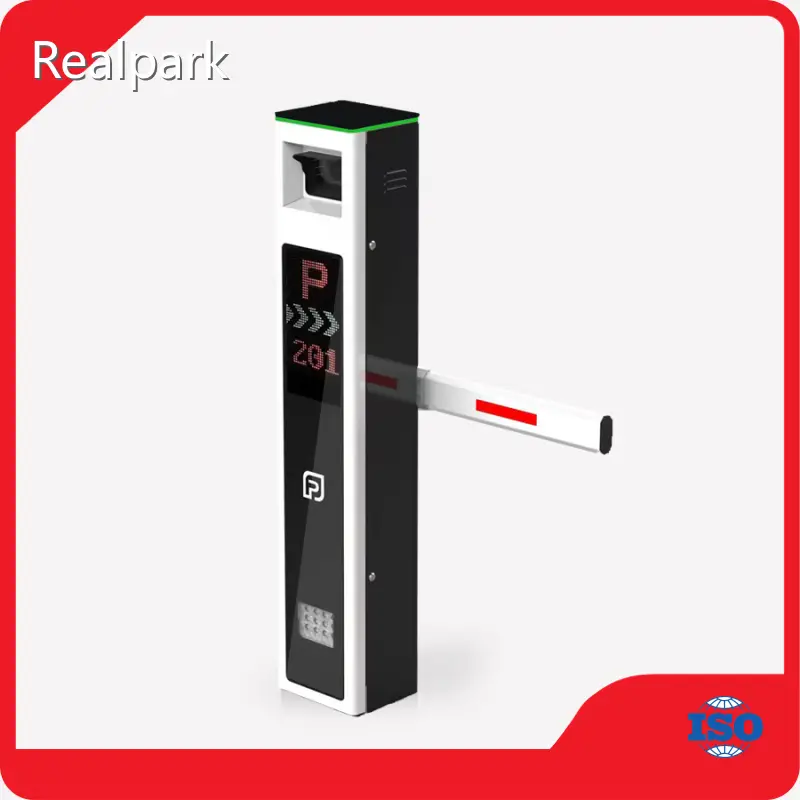

RPL-YY04 Integrated Barrier Gate Ticketless Parking Controller
RPL-YY04 is positioned as a professional barrier gate integrated ticketless parking controller, integrating barrier gate, LPR algorithm, high-definition camera, fill light, L192cm*H384cm (P3 full-color LED eight-line display), single LED display in the One. Module 64*64 dot matrix resolution. RPL-YY04 license plate recognition all-in-one machine is a high-end license plate recognition controller product carefully designed by Realpark. The system supports mobile payment, non-inductive payment, dynamic QR code scanning for unlicensed vehicles to enter and exit, LCD screen custom leisure time advertisements, electronic coupons, electronic invoices and other functional features, which can meet the requirements of pure license plates in the parking lot. Identify the system application environment to facilitate on-site installation, commissioning and maintenance.It is widely applicable to the following scenarios.
The product has a unique appearance and strong performance, giving people a sense of low-key, luxury, calm and grandeur
The main material is high-strength carbon steel. The front of the fuselage is laminated with a whole piece of tempered glass. The fuselage adopts geometric structure and sharp design. The combination of silver, white and black brings you a more shocking vision.
Recognition Widely License plate recognition algorithm exception handling function is powerful
Using the deep learning license plate recognition algorithm independently developed by Realpark, the accuracy rate of license plate recognition can reach more than 99%.
The image processing unit cooperates with intelligent exposure compensation technology to capture the optimal picture for identification in complex lighting environments such as strong light, weak light and backlight.
For license plate recognition under abnormal phenomena such as no license plate, defaced license plate, trouble license plate, and bad weather environment, the system will start the abnormal processing or fuzzy matching function to optimize the recognition results
Support Multiple parking solutions Wide Range of Applications
At present, we provide LPR parking, ticket parking, RFID card parking, UHF parking and other separate parking solutions, and can also be used in combination with two or more solutions. We provide the best parking solution according to your actual project needs.
Smart parking solutions make unattended parking the trend of the future. Car owners use license plate recognition to enter and exit the parking lot through the parking lot for electronic payment, central payment, cash payment, or credit card payment. Background management personnel use the platform for round-the-clock monitoring and maintenance. The Realpark parking management system greatly reduces labor costs and maintenance costs, and also improves management efficiency.
Self-Developed Software and Hardware Intergrated Platform, More Perfect Performance, Support Customization
The self-developed license plate recognition all-in-one machine and Realpark license plate recognition parking management system are connected together to improve the intelligent level of equipment, reduce the difficulty of parking lot management, strengthen the emergency response capability of the parking lot, and reduce operating costs. Compared with the traditional parking management system, the management efficiency is higher, the cost is lower, and the application is more abundant.
Self-developed software, hardware and cloud platform, more perfect performance, support special function customization.
Company Features
· Shenzhen Realpark Co., Ltd. is a manufacturer of number plate recognition established years ago. We have broad backgrounds and extensive experience in this industry.
· Our factory complies with ISO9001 and has export licenses. We own and operate advanced facilities in our factory, giving us complete control over the production process.
· We leverage diversity through inclusion of employees, empowering them to shape the future of the corporation through collaboration and innovation. Inquire online!
Product Details
The details of number plate recognition are shown for you at below.
Application of the Product
Various in function and wide in application, the number plate recognition can be used in many industries and fields.
We have been engaged in the production and management of Intelligent parking management solutions,Parking management software,License plate recognition all-in-one machine for many years. For some problems encountered by customers in the procurement, we have the ability to provide customers with a practical and effective solution to help customers solve problems better.
Product Comparison
Compared with other products in the same industry, Realpark's number plate recognition has the following characteristics.
Enterprise Advantages
Realpark is committed to providing quality products and services for customers. We have a talents team with rich experience and mature technology. The team members focus on innovation and excellence.
Our company serves customers wholeheartedly with the spirit of 'sincere and credit'.
In the future, Realpark will always adhere to the business philosophy of 'survive with quality, develop with reputation'. We strive to transform the development mode and deepen the optimized combination of the supply chain, value chain, and management chain. Moreover, we implement the scientific brand development strategy to create the first-class brand within the industry. Our goal is to become a leader in the domestic market.
Since the beginning in our company has accumulated a large amount of production experience after the development for years.
Good reputation, high-quality products and services have won a large number of loyal customers at home and abroad.
