Professional Parking Solutions Provider for Various Industries Smart Automatic Parking Requirement.

Licence Plate Detection Type a/ Type B/ Type C Option 0.01Lux ≥100dB Realpark Brand

Part Number:

RPL-YY01

License Plate Recognition Camera:

Type A/ Type B/ Type C Option

lmage Output:

300W/400W pixel JPEG Option

Minimum Illumination:

0.01Lux

Wide Dynamic Range:

≥100dB

Inquiry

Product details of the licence plate detection

Product Information

Realpark licence plate detection is a newly designed with advanced international level. The QC team has been always focusing on providing the highest quality of this product for customers. Due to its significant economic return, the product is becoming more and more important and widely used.

Product Parameter

Part Number	RPL-YY01
License Plate Recognition Camera	Type A/ Type B/ Type C Option
lmage Output	300W/400W pixel JPEG Option
Minimum Illumination	0.01Lux
Aperture	Fixed aperture focal length:6mm
Wide Dynamic Range	≥100dB
Storage Port	Supports SD2.0 Micro SD (TF) Cards with a maximum capacity of 128GB
LED Screen Size	260mm*260mm (P4.75 Top Red and Bottom Green LED Two-line Display)
Resolution	Single LED module 64*32 Lattice
LED Energy	Saving Supplement Light
Class of Protection	IP42, certain dust-proof and waterproof function
Operating Temperature	-10℃ ~ 60℃ (optional thermostat)
Working Humidity	5% to 85%
Power Dissipation	100W MAX
Box Size	Height 1380mm * Width 255mm * Thickness 170mm
Weight	≈13kg

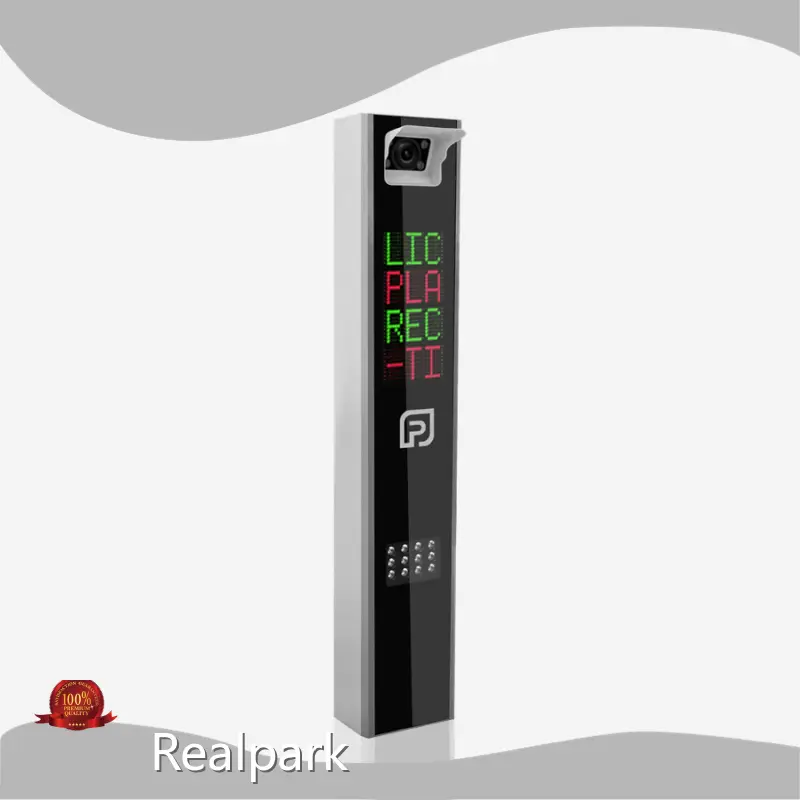

RPL-YY01 License Plate Recognition Camera Integrated Ticketless Parking Controller

RPL-YY01 is positioned as a professional integrated ticketless parking controller, integrating barrier gate, LPR algorithm, high-definition camera, fill light, 160mm*320mm (P4.75 LED 2 lines) LED display, single LED display in the One. Module 64*32 dot matrix resolution. The AI license plate recognition algorithm independently developed by Realpark has increased the recognition accuracy to 99%. This product can be used in conjunction with video intercom terminals and management platforms, and supports multiple extended functions, such as front-end voice interaction, advertisement push, etc. Most importantly, it can support unattended parking applications, online payment and remote management and maintenance. RPL-YY01 can be used in industrial parks, residential areas, large commercial buildings, shopping malls, government agencies, etc.

Pro32_8

Pro32_9

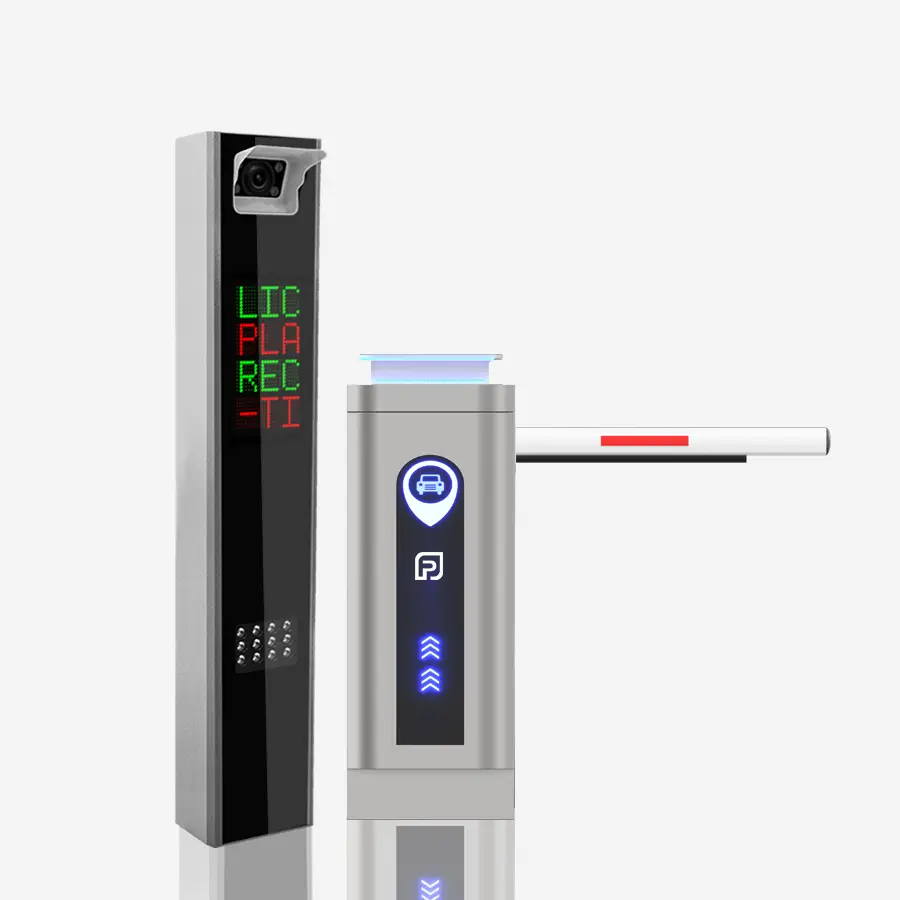

Humanized Appearance Design Personalized and Ingenious Creation

The camera is tilted down: avoid light and rain, directly view the license plate; the recognition range is wider. Real materials, exquisite workmanship, unique ingenuity; full, exquisite, atmospheric, and good color sense; meet customers' needs for advocating practicality and beauty!

Pro32_11

Pro32_12 (2)

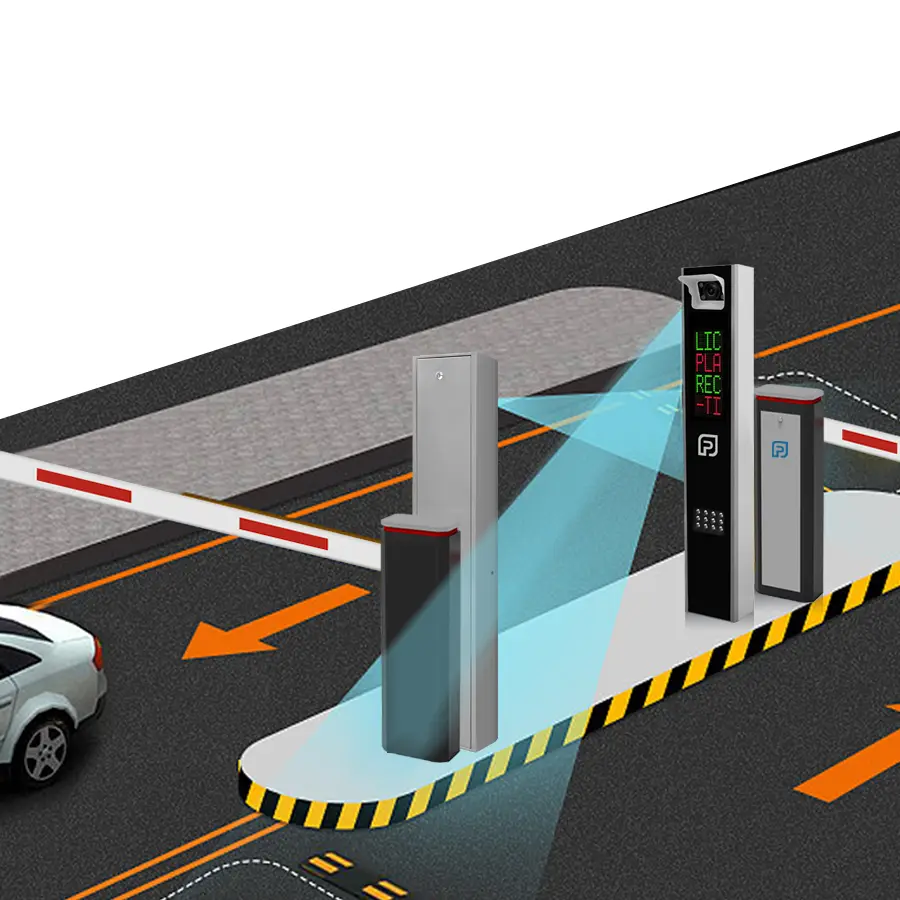

Diversified Scene Application

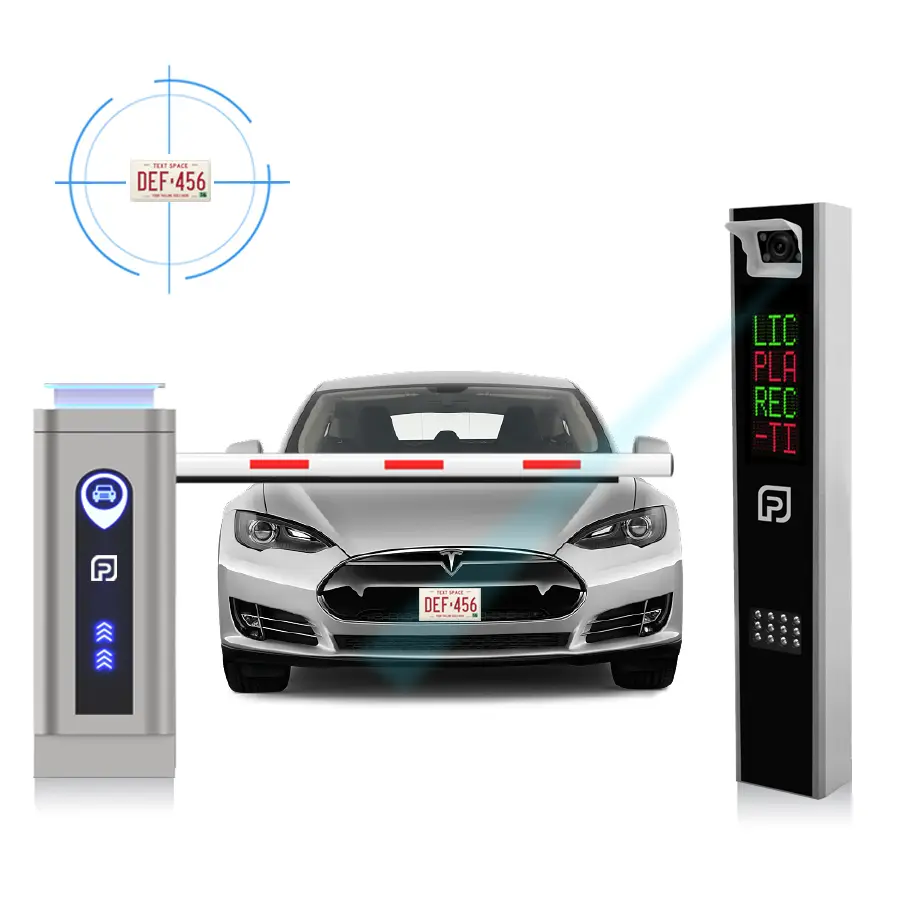

Adapt to different scene angle requirements: the camera recognition angle can be fine-tuned up, down, left, and right to achieve the best recognition angle, and the recognition rate is over 99%.

Pro32_14

Pro32_15

Strong Machine Hardware Scalability

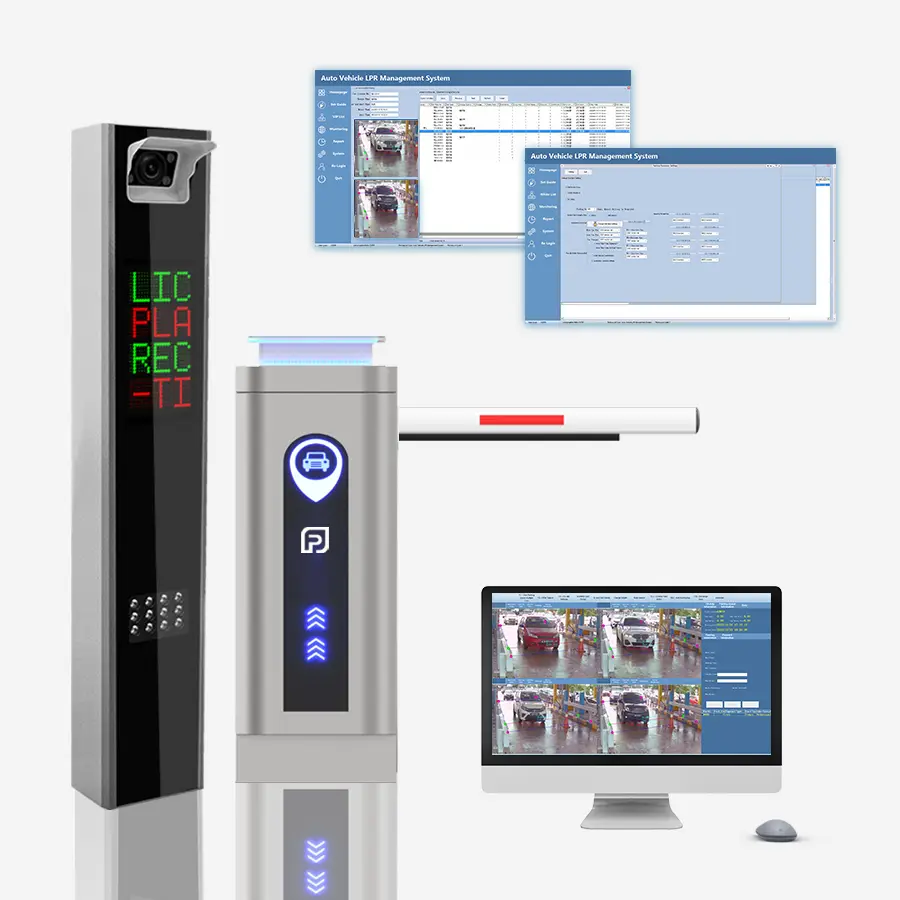

This device can be connected to auxiliary identification cameras, information display screens, visual intercom terminals, and environmental monitoring cameras to realize more applications in parking lots, such as real-time monitoring, audio and video intercom, fast payment, emergency handling and other functions. Compared with the traditional parking management system, the management cost is lower, the application is richer, and the efficiency is higher.

Pro3-e1

Pro3-e2

Powerful Support of the Cloud Platform

Support Technical Remote Debugging and Maintenance

The parking lot equipment can be connected to the operation and maintenance platform. Any abnormal events will be notified in time, and the status of the equipment can be seen at a glance.

The product supports remote upgrade, parameter configuration, log acquisition, remote monitoring and other management, which can solve the problem in the first time, and the operation and maintenance service is more efficient.

Company Feature

• Realpark enjoys a good geographic location. There are different major traffic lines crossing the city. The transportation of Intelligent parking management solutions,Parking management software,License plate recognition all-in-one machine is strongly guaranteed by the unimpeded traffic.
• Realpark's products are mainly sold to major cities in China and are exported to They are highly valued by consumers.
• Realpark runs a comprehensive supply system and after-sales service system. We are committed to providing excellent service for the majority of customers.
• Through professional training and rigorous assessment, our company has established a high-quality R&D and production team. They are able to provide professional and thoughtful technical support and services.
Contact Realpark, and you can get special offers.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
