Professional Parking Solutions Provider for Various Industries Smart Automatic Parking Requirement.

Custom Automatic License Plate Recognition Realpark 0.01Lux ≈70kg RPL-XY01 1
Custom Automatic License Plate Recognition Realpark 0.01Lux ≈70kg RPL-XY01 2
Custom Automatic License Plate Recognition Realpark 0.01Lux ≈70kg RPL-XY01 3
Custom Automatic License Plate Recognition Realpark 0.01Lux ≈70kg RPL-XY01 4
Custom Automatic License Plate Recognition Realpark 0.01Lux ≈70kg RPL-XY01 5
Custom Automatic License Plate Recognition Realpark 0.01Lux ≈70kg RPL-XY01 6
Custom Automatic License Plate Recognition Realpark 0.01Lux ≈70kg RPL-XY01 1
Custom Automatic License Plate Recognition Realpark 0.01Lux ≈70kg RPL-XY01 2
Custom Automatic License Plate Recognition Realpark 0.01Lux ≈70kg RPL-XY01 3
Custom Automatic License Plate Recognition Realpark 0.01Lux ≈70kg RPL-XY01 4
Custom Automatic License Plate Recognition Realpark 0.01Lux ≈70kg RPL-XY01 5
Custom Automatic License Plate Recognition Realpark 0.01Lux ≈70kg RPL-XY01 6

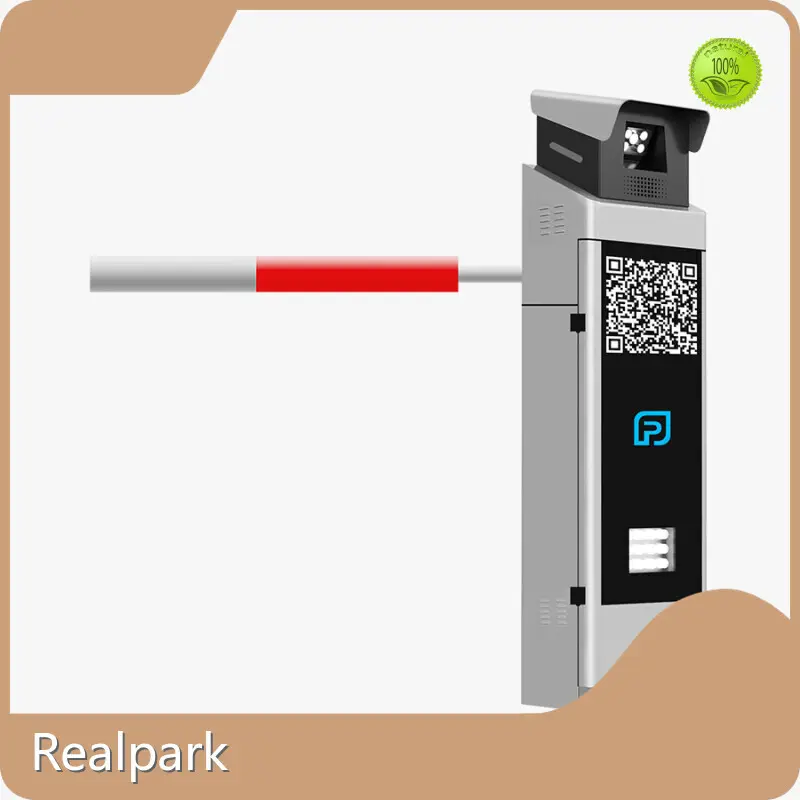

Custom Automatic License Plate Recognition Realpark 0.01Lux ≈70kg RPL-XY01

Part Number:
RPL-XY01
Minimum Illumination:
0.01Lux
Weight:
≈70kg
Inquiry
Send your inquiry

Product details of the automatic license plate recognition


Product Introduction

Realpark automatic license plate recognition is incorporated with many technologies and the latest industry innovations. All incoming materials are inspected to ensure they match the quality requirement. To make sure of quality, automatic license plate recognition is strictly tested again and again.

Technical Parameter

Part Number RPL-XY01
LED Screen Size 260cm*260cm(P4 Full-color LED 4-Line Display)
Resolution 64*32 Dot-matrix Single LED Module
Car License Plate Camera Picture Output 3 Million Mixel JPEG
Minimum illumination 0.01Lux
Aperture Fixed Aperture
Focal Length 6mm
Storage Interface Support SD2.0 Standard Micro SD(TF) Card, Max 32G
Wide Dynamic Range ≥100dB
X04 Main Board Voice Remind Temporary Cars and Vip Cars, Welcome to you, Have a nice day, etc.
Show Support Multi-LED Module
Power Voltage Voltage AC230V
Highway Barrier Gate Motor Rated Speed 22R/Min
Standard Stop Bar Length 3.00m
Running Noise ≤60dB
Bar Lift Time 1.2~1.4S
Operating Life ≥5 Million Times
Malfunction of the Lever ≯0.01%
Motor Power 80W
General Parameters Protection Class IP42,Certain Dustproof and Waterproof
Operating Temperature -10℃~60℃ (Optional Thermostat)
Working Humidity 5%~85%
Power Consumption 150W MAX
Equipment Size 380*400*1405mm(Width*Thickness*Height)
Weight ≈70kg

Technology Is The Core Of Our Hardware And Software, And The Appearance Is Designed Independently

The main material is high-strength carbon steel. The front of the fuselage is laminated with a whole piece of tempered glass. The fuselage adopts geometric structure and sharp design. The combination of silver, gold and black brings you a more shocking vision.

RPL-XY01 is positioned as a professional barrier gate integrated ticketless parking controller, integrating barrier gate, LPR algorithm, high-definition camera, fill light, 160mm*320mm (P4.75 LED 2 lines) LED display, single LED display in the One. Module 64*32 dot matrix resolution. The AI license plate recognition algorithm independently developed by Realpark has increased the recognition accuracy to 99%. This product can be used in conjunction with video intercom terminals and management platforms, and supports multiple extended functions, such as front-end voice interaction, advertisement push, etc. Most importantly, it can support unattended parking applications, online payment and remote management and maintenance. RPL-XY01 can be used in large commercial buildings, shopping malls, government agencies, residential areas, industrial parks, etc.

Pro5-2 (2)
Pro5-2 (2)
Pro5-3
Pro5-3
Pro6-1 (2)

Perfectly Compatible with Complex Scenes

Dual license plate signal capture via video stream and loop detector/radar for 99% license plate capture rate. The product supports dual-channel camera collaborative recognition to meet the complex application scenarios of mixed driving of cars and motorcycles. At the same time, indoor and outdoor, winter rainy season is also completely no problem.

Pro6-3 (2)
Pro6-3 (2)
Pro6-4 (2)
Pro6-4 (2)
Pro6-2 (2)
Pro38-1

Powerful Hardware Platform, More Robust Performance

Built-in self-developed unique license plate recognition algorithm and high-end technology image processing unit from different countries around the world. At the same time, powerful application processing capabilities and deep learning capabilities for license plate recognition make the technology more powerful, and the product uses an industrial-grade quad-core high-end hardware platform .

Pro5-8
Pro5-8
Pro5-9
Pro5-9
Pro5-10

Powerful Hardware Platform Greater Scalability to Access More

The self-developed license plate recognition algorithm and professional image processing unit are built on the industrial-grade quad-core high-end hardware platform, which makes the application processing capability and deep learning ability of license plate recognition more powerful.

The controller can be connected with visual intercom terminals, auxiliary identification cameras, information display screens, and environmental monitoring cameras to realize more parking lot applications, such as audio and video intercom, real-time monitoring, fast payment, emergency handling and other functions. Compared with the traditional parking management system, the management efficiency is higher, the cost is lower, and the application is more abundant.

Pro5-11
Pro5-11
Pro5-12
Pro5-12
Pro5-13
Pro5-13
Pro5-14

It is perfectly compatible with different installation environments and usage scenarios.

This device can be connected to auxiliary identification cameras, information display screens, visual intercom terminals, and environmental monitoring cameras to realize more applications in parking lots, such as real-time monitoring, audio and video intercom, fast payment, emergency handling and other functions. Compared with the traditional parking management system, the management cost is lower, the application is richer, and the efficiency is higher.

Unattended parking lot self-service payment, cloud platform management and maintenance will become the mainstream

Smart parking solutions make unattended parking the trend of the future. Car owners use license plate recognition to enter and exit the parking lot through the parking lot for electronic payment, central payment, cash payment, or credit card payment. Background management personnel use the platform for round-the-clock monitoring and maintenance. The Realpark parking management system greatly reduces labor costs and maintenance costs, and also improves management efficiency.

Pro6-6


Company Advantage

• provides customers with a full range of services to meet the individual needs of different customers.
• Since the establishment in Realpark has experienced vigorous development and continuous growth for years. Now, we have been leading the industry.
• At the moment, our company's sales network has spread all over the country's major cities and regions. In the future, we will strive to open up a broader overseas market.
• Our company has an excellent geographical location, with convenient transportation conditions. And they are the good foundation for our own development.
• Our company brings together many middle and senior technical talents who have worked hard for many years in industry.
Realpark's Intelligent parking management solutions,Parking management software,License plate recognition all-in-one machine are trustworthy with excellent quality and favorable price. Please contact us as soon as possible if you need it!

Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
